ADSB Station Setup

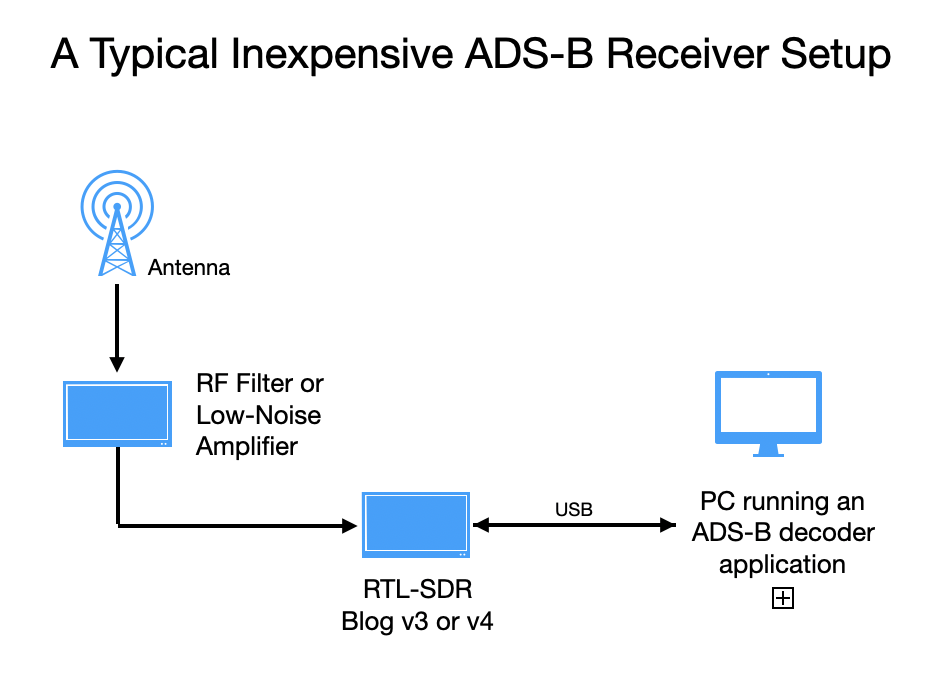

A simple low-cost ADS-B decoder can be set up as shown in the image below.
ADS-B signals can be received and easily decoded on a home PC without expensive equipment. An inexpensive SDR with an appropriate antenna and a computer, even a Raspberry Pi, with free ADS-B software can be used to receive ADS-B broadcasts and decode the data.

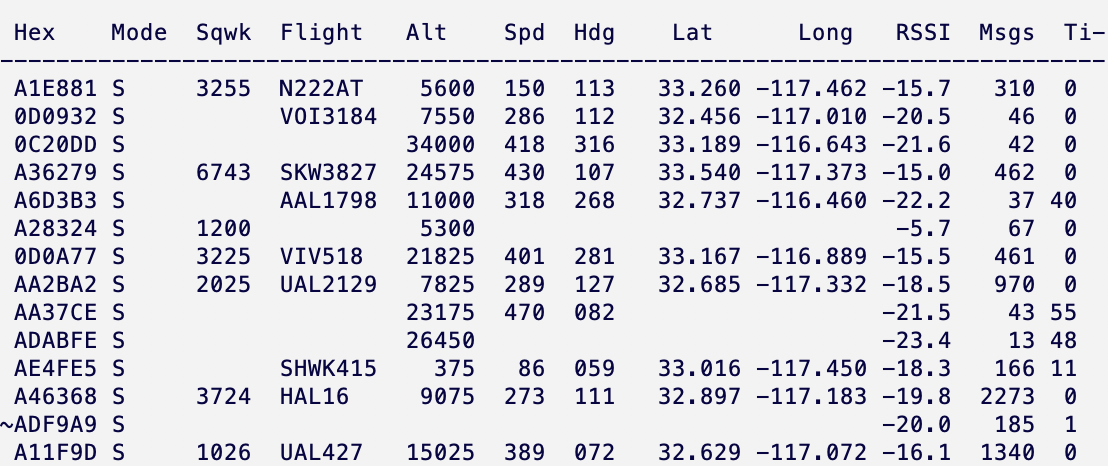

Here is an example of text output from a dump1090 program:
There are also a number of commercial ADS-B software packages that can be purchased for a turn-key installation of a personal station.
Those websites that publish ADS-B information depend on lots of private ADS-B monitoring stations scattered all over the world taking part by reporting their data which is then aggregated and subsequently shared.
References:
- PiAware ADSB Software for the Raspberry Pi 🔗 PiAware on GitHub
- FlightAware Flight Tracking 🔗 FlightAware
Note: PARC does not sell or endorse any products mentioned in these pages.
Information is provided for education and instructional purposes only.
