PARC STEMLab Software Defined Radios
These are the SDRs that are used in the PARC STEMLab. This selection of SDRs provides different band coverage and experiences for our users. More units will be added in the future to extend the STEMLab's capabilities.
In addition to the SDRs, information about additional equipment, such as antennas and multi-couplers, that are used can be found here:
Info: ⓘ SDR Support Hardware
Airspy HF+ Discovery - HF and VHF SDR
Info: ⓘ Airspy HF+ Discovery Information
The Airspy HF+ Discovery SDR is a high-quality compact USB dongle.
It provides coverage of the HF bands from 500 kHz to 31 MHz. It can also receive from 60 MHz to 260 MHz.
The STEMLab has two of these in the HF Bench that cover the amateur HF bands.
• Airspy HF+ Discovery 🔗 Airspy.com
RTL-SDR Blog - Wideband SDR
Info: ⓘ RTL-SDR Information
The RTL-SDR Blog's version 3 SDR is a very low-cost but surprisingly capable SDR.
It can provide coverage from 24 MHz to approximately 1766 MHz (or more). There are two of these for VHF and above coverage in the Experimentation Bench.
• RTL-SDR 🔗 About the RTL-SDR
• RTL-SDR Blog 🔗 RTL-SDR Blog

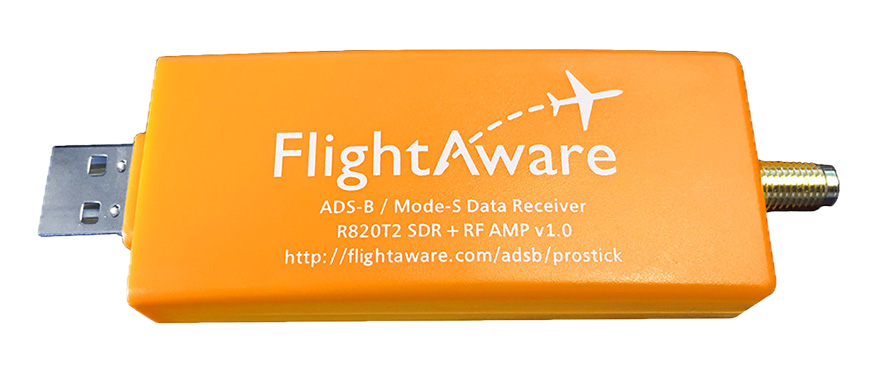

FlightAware Pro Stick - an RTL-SDR optimized for UAT & ADSB
Info: ⓘ FlightAware Pro Stick Information
The Pro Stick is based on the RTL-SDR dongle. It can best receive from about 600 MHz to approximately 1.2 GHz. FlightAware has optimized the device for UAT and ADSB reception. It is installed in the Experimentation Bench.
• FlightAware Pro Stick 🔗 FlightAware Pro Stick

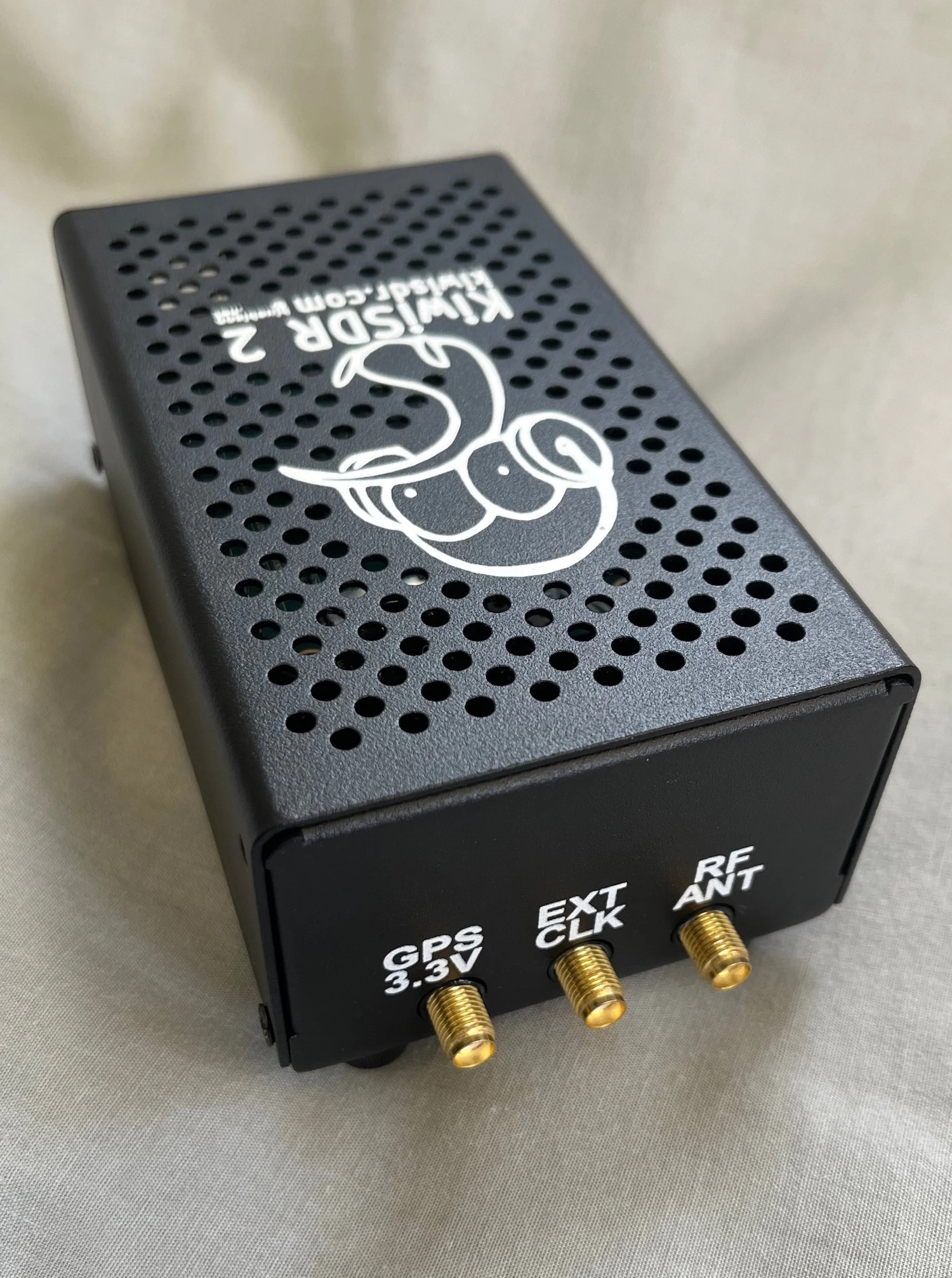

KiwiSDR - Wideband Full HF Band SDR
Info: ⓘ KiwiSDR Information
The Kiwi SDR is a popular self-contained wide-band HF SDR. It provides simultaneous coverage from 500 kHz to approximately 30 MHz. The KiwiSDR is accessed through the in-built OpenWebRX server via a web browser.
• KiwiSDR v2.0 🔗 KiwiSDRNote: PARC does not sell or endorse any products mentioned in these pages.
Information is provided for education and instructional purposes only.
