STEM Experimentation Lab Information
The Experimentation Bench of the STEM Lab has multiple SDRs with server applications to provide remote access.
OpenWebRX+ servers provide the access to the SDRs without requiring that any software be installed on client machines. It offers a huge range of analog and digital modes usable on the VHF/UHF bands.
What's There?
The equipment consists of:
- Stridesberg Engineering 4-output active VHF-UHF multi-coupler with a passband from 50MHz - 1GHz (for antenna sharing and front-end overload protection).
- RTL-SDR Blog v3 SDR
- RTL-SDR BLog v4 SDR
- FlightAware Pro Stick SDR
- BQ Consulting Station G2 Meshtastic Node
-
A Raspberry-Pi single-board computer for each SDR.
The OS is Debian 12 Bookworm.
Remote access to the SDRs is provided through an OpenWebRX+ server application.
ⓘ OpenWebRX+ Information and Operation
The PARC Meshtastic Node is identified as "PARC" and "W6NWG" on the Meshtastic network.
Learning Topics
⇒ Digital Radio Modes
- RTTY, AMTOR, PACTOR, PSK31, Clover, Packet, etc. ⓘ Digital Modes in Amateur Radio
- WSPR ⓘ WSPR Information
⇒ Digital Radio Technologies
- Lora & LoraWAN ⓘ LoRa Information
- Meshtastic off-grid mesh networks ⓘ Meshtastic Information
- Meshcore off-grid mesh networks ⓘ Meshcore Information
⇒ Advanced Amateur Radio
- Meteor Scatter Communications ⓘ Meteor Scatter
⇒ SDR Tracking Projects
- Aircraft tracking with ADS-B (Automatic Dependent Surveillance-Broadcast) ⓘ ADS-B Information
- APRS ⓘ APRS Information
- Weather Ballon Tracking ⓘ Weather Balloon Tracking Information
⇒ SDR Projects For Home
- Projects and Labs You Can Do At Home ⓘ Home Labs Information
⇒ Additional References ⓘ References
Actually any of these can be done at home with the proper equipment and software.

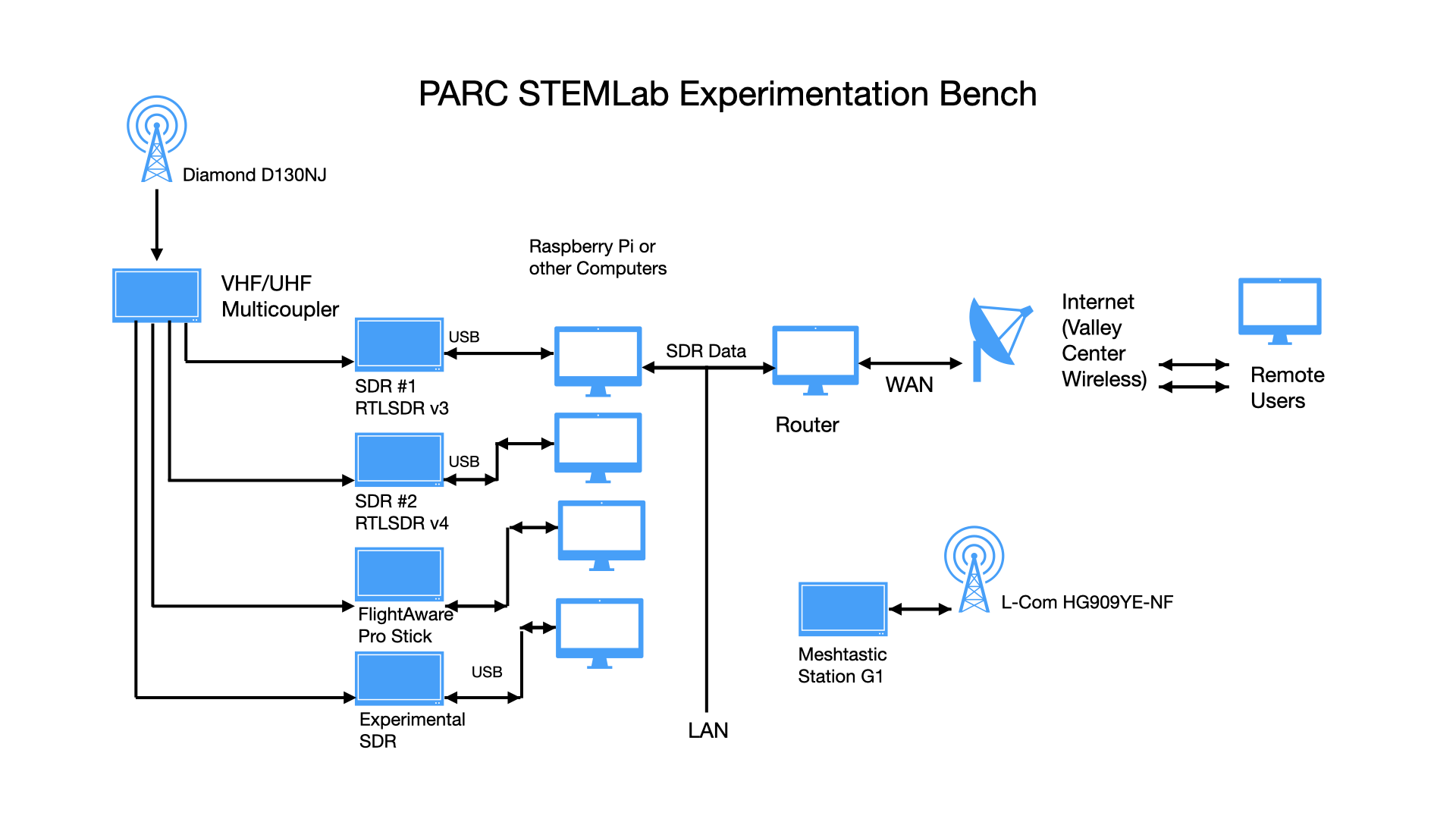

STEM Experimentation Lab Equipment Layout
